Informative tooltip to highlight features in flutter

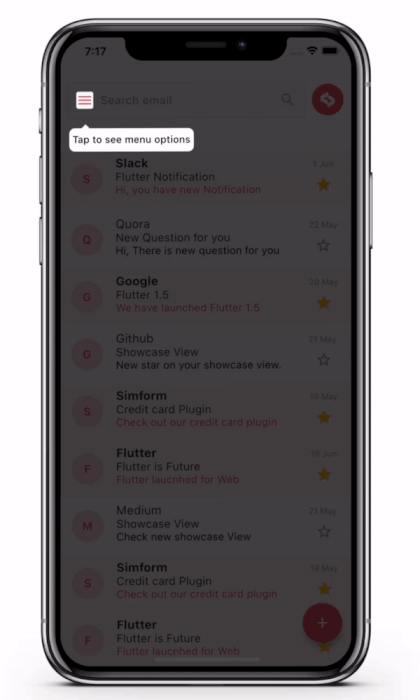

ShowCaseView package allows you to showcase/highlight widgets step by step. It let’s you use an informative tooltip to help your users identify different features of your application. The basic use of the package consists of a target element passed as input which will be highlighted over a translucent background and pointed out by a tooltip. Even you can pass your custom widget in ShowCaseView.

Setup

1. Add dependency to pubspec.yaml

dependencies:
    showcaseview: ^1.1.5

2. Import the package

import 'package:showcaseview/showcaseview.dart';

Implementation

1. Adding a ShowCaseWidget widget.

Wrap widget you want to highlight with ShowCaseWidget . It will be parent widget ofShowcase widget

ShowCaseWidget(
  builder: Builder(
    builder : (context) ()=> Somewidget()
  ),
),

2. Adding a Showcase widget.

GlobalKey _one = GlobalKey();
GlobalKey _two = GlobalKey();
GlobalKey _three = GlobalKey();
...
Showcase(
  key: _one,
  title: 'Menu',
  description: 'Click here to see menu options',
  child: Icon(
    Icons.menu,
    color: Colors.black45,
  ),
),

Some more optional parameters

Showcase(
  key: _two,
  title: 'Profile',
  description: 'Click here to go to your Profile',
  disableAnimation: true,
  shapeBorder: CircleBorder(),
  radius: BorderRadius.all(Radius.circular(40)),
  showArrow: false,
  overlayPadding: EdgeInsets.all(5),
  slideDuration: Duration(milliseconds: 1500),
  tooltipColor: Colors.blueGrey,
  blurValue: 2,
  child: ...,
),

3. Using a Showcase.withWidget widget.

We can customize it by passing the height ,width and shapeBorder of your tooltip widget in Showcase.withWidget widget

Showcase.withWidget(
  key: _three,
  cHeight: 80,
  cWidth: 140,
  shapeBorder: CircleBorder(),
  container: Column(
    crossAxisAlignment: CrossAxisAlignment.start,
    children: <Widget>[
      ...
    ],
  ),
  child: ...,
),

4. Starting the ShowCase

We can start showcase with startShowcase method where we will pass the global keys (widget Ids)

someEvent(){
    ShowCaseWidget.of(context)!.startShowCase([_one, _two, _three]);
}

5. onFinish method for ShowCase

It’s a callback or method to know when showcase has been showed, in order to do something after all steps are finished.

ShowCaseWidget(
  onFinish: () {
    // Your code goes here
  },
  builder: Builder(
    builder : (context) ()=> Somewidget()
  ),
),

6. Go to next ShowCase

someEvent(){
  ShowCaseWidget.of(context)!.next();
}

7. Go to previous ShowCase

someEvent(){
  ShowCaseWidget.of(context)!.previous();
}

If you want to start the ShowCaseView as soon as your UI built up then use below code.

WidgetsBinding.instance!.addPostFrameCallback((_) =>
  ShowCaseWidget.of(context)!.startShowCase([_one, _two, _three])
);

Check out the example app in the example directory or the ‘Example’ tab on pub.dartlang.org for a complete example.
